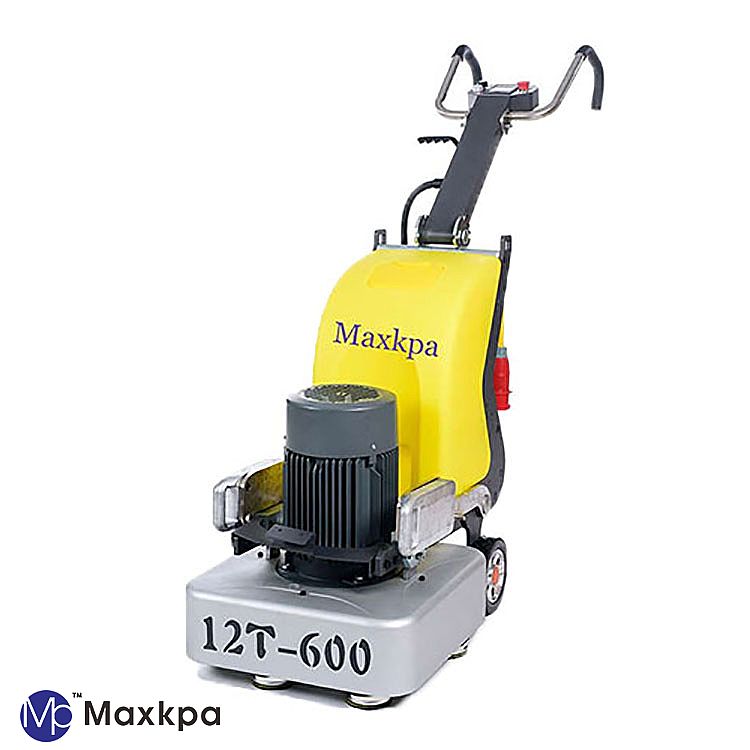

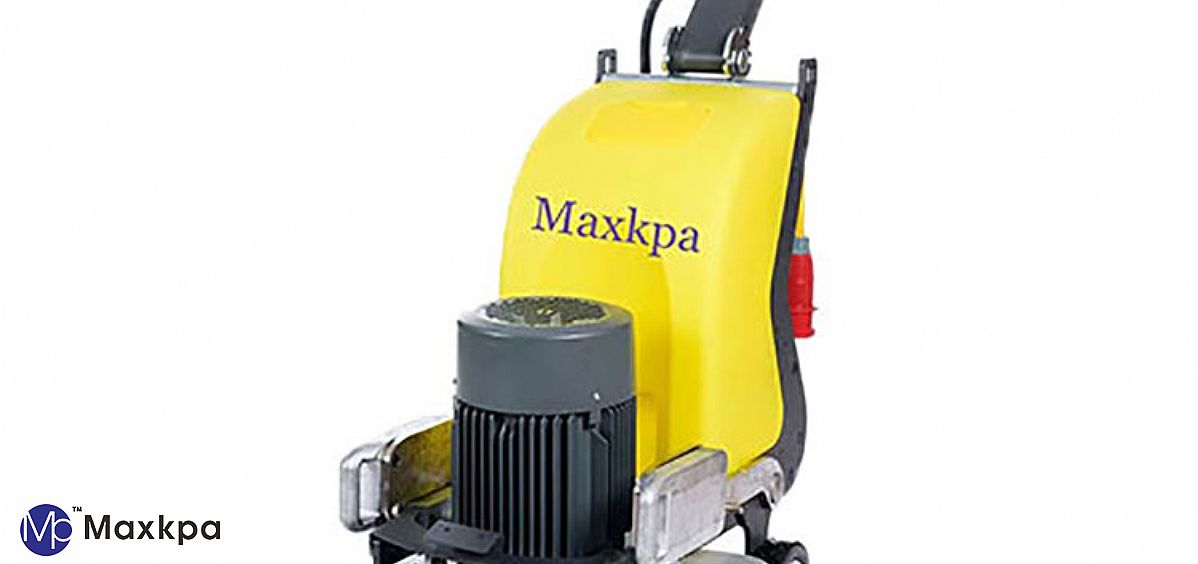

New Model Floor Grinder with Vacuum Cleaner - 12 heads NM600

N12T600

All aluminum alloy gearbox with built-in high-precision gears, reasonable structure, and difficult to fight.
The S-shaped frame design makes it possible to see a larger angle when changing the abrasive discs, placing it on the ground more smoothly, and taking into account the appearance. Contact Us

New Model Floor Grinder with Vacuum Cleaner - 12 heads NM600

.

The S-shaped frame design makes it possible to see a larger angle when changing the abrasive discs, placing it on the ground more smoothly, and taking into account the appearance.

Small size and lightweight, more suitable for proofing.

2019 and 2018

Function

Floor grinding, concrete rough ground grinding, old epoxy floor renovation, sealed fixed floor polishing, marble floor maintenance.

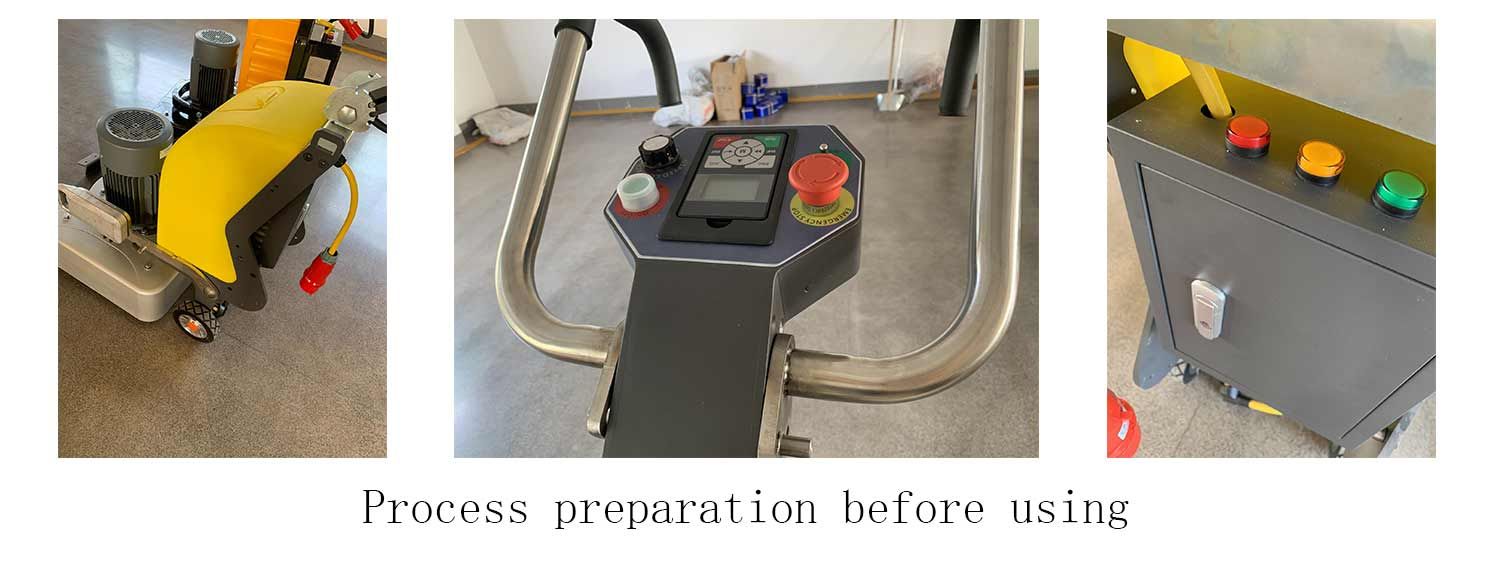

Process preparation before using the machine

1.The first step is to check the appearance of the machine. Put the machine on the ground and check whether the buttons can be pressed to rotate the goods, whether the grinding disc can be rotated; whether the grinding disc can be installed on the chassis;

2.The second step, check the input voltage system. Drop the power cord into the plug, pay attention to distinguish between 380V or 220V, whether it is single-phase or three-phase. Pay attention to the connection of live and ground wires to prevent phase loss or under voltage;

3.The third step is to check the power-on response. See if the indicator light on the electrical box of the machine is on; release the emergency stop button, turn on the start button and turn the speed knob to see if the machine can run idly, and the panel displays whether the voltage and current are normal;

4.The fourth step is to check the preliminary operation of the machine. The machine started to be used formally. In 20 minutes, pay attention to whether the machine is extremely hot, has abnormal noises, or does not move;

Model 12T-600
Voltage 220V/380V(Customizable)
Phase 1phase/3phase
Power 7.5KW(10hp)
Inverter 7.5KW(10hp)
Frequency 50/60HZ
Working Width 580mm
Disc Quantity 12
Rotating Speed 300-1800rpm
Water Tank Volume 68L
Dimension 105*80*120cm
Weight 295kg
