Function
Floor grinding, concrete rough ground grinding, old epoxy floor renovation, sealed fixed floor polishing, marble floor maintenance.
Features
All aluminium alloy gearbox with built-in high-precision gears, reasonable structure and difficult to fight.
The S-shaped frame design makes it possible to see a larger angle when changing the abrasive discs, placing it on the ground more smoothly, and taking into account the appearance.
Small size and lightweight, more suitable for proofing.
performance:
1. All-aluminum alloy shell with novel appearance design;
2. It adopts all aluminium alloy gearbox, which has better heat dissipation function;
3, innovative body design, more ergonomic, so that both hands after a long grip without effort;
Process preparation before using the machine
1.The first step is to check the appearance of the machine. Put the machine on the ground and check whether the buttons can be pressed to rotate the goods, whether the grinding disc can be rotated; whether the grinding disc can be installed on the chassis;
2.The second step, check the input voltage system. Drop the power cord into the plug, pay attention to distinguish between 380V or 220V, whether it is single-phase or three-phase. Pay attention to the connection of live and ground wires to prevent phase loss or under voltage;
3.The third step is to check the power-on response. See if the indicator light on the electrical box of the machine is on; release the emergency stop button, turn on the start button and turn the speed knob to see if the machine can run idly, and the panel displays whether the voltage and current are normal;
4.The fourth step is to check the preliminary operation of the machine. The machine started to be used formally. In 20 minutes, pay attention to whether the machine is extremely hot, has abnormal noises, move or not;
| Model |

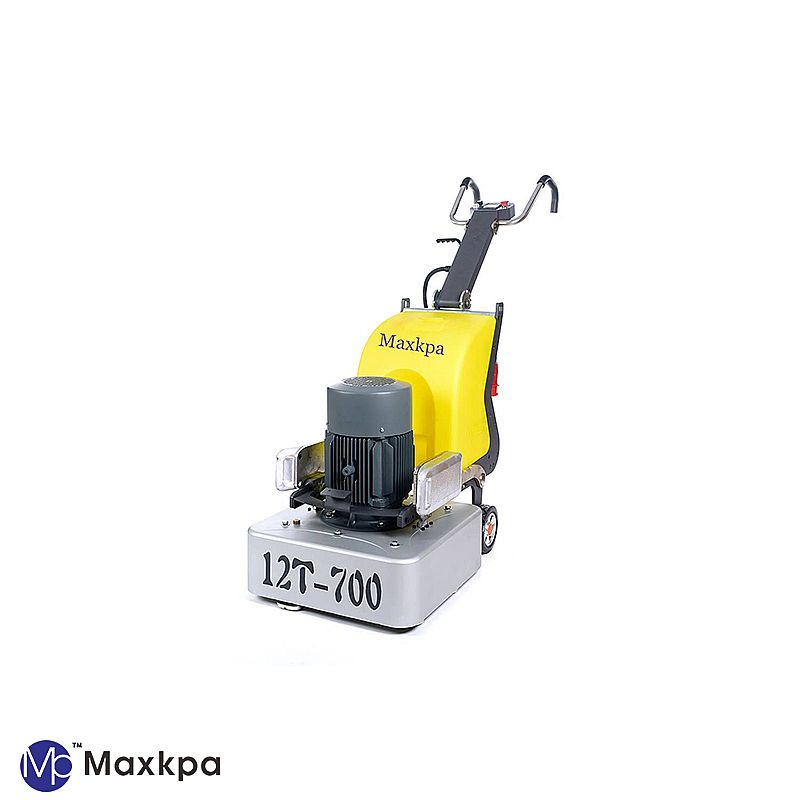

12T-700 |
| Voltage |
380V(Customizable) |
| Phase |
1phase/3phase |
| Power |
11KW(15hp) |
| Inverter |
15KW(20hp) |
| Frequency |
50/60HZ |
| Working Width |
680mm |
| Disc Quantity |
12 |
| Rotating Speed |
300-2400rpm |
| Water Tank Volume |
80L |
| Dimension |
120*80*130cm |
| Weight |
380kg |
