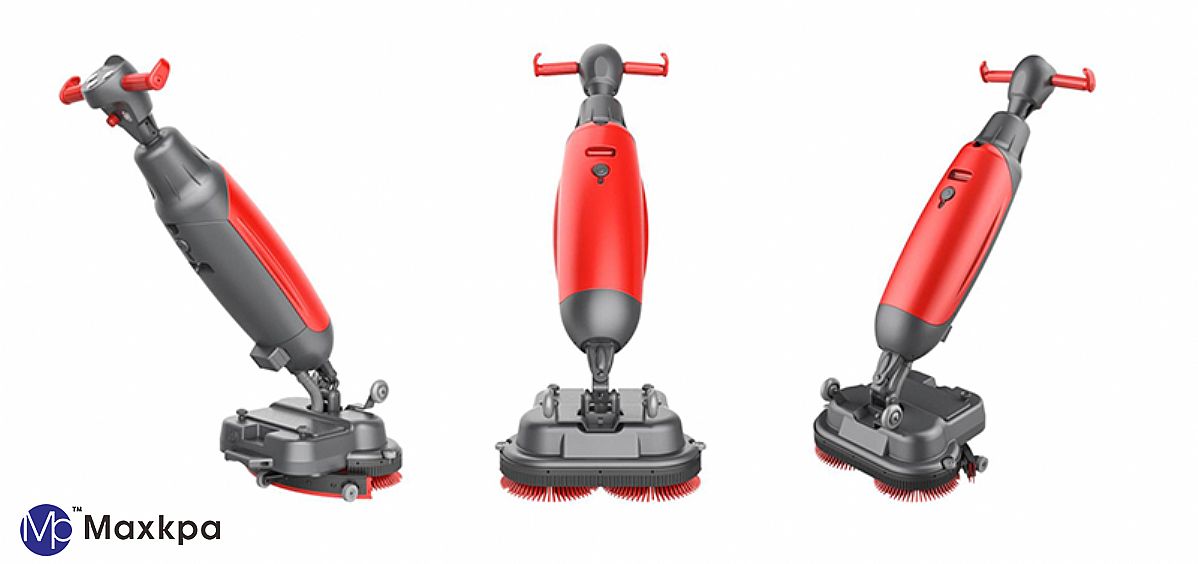

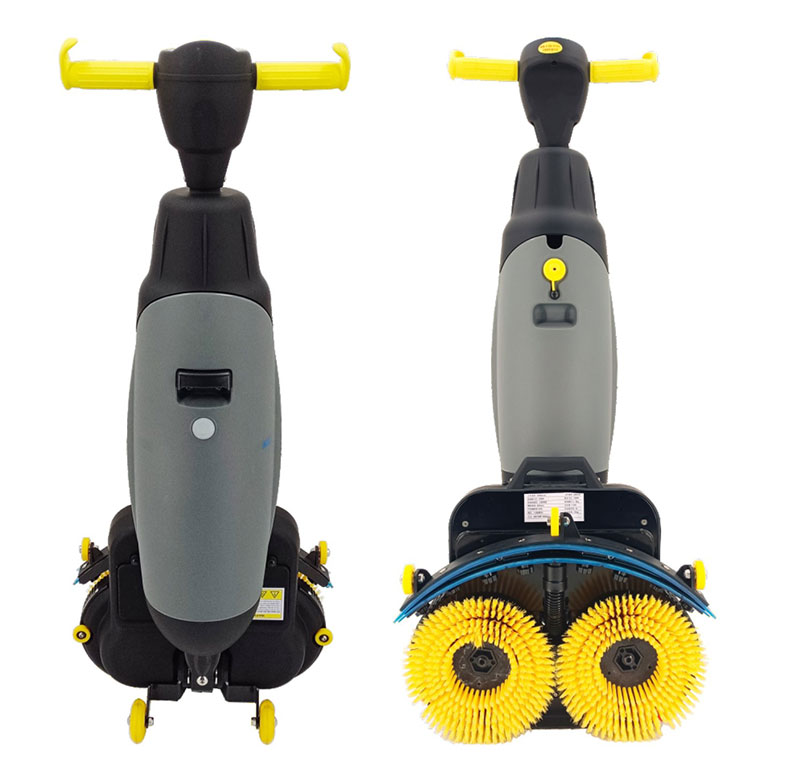

Mini floor scrubber

MFS01

Application:
1. Restaurants, hotels, shopping malls: flexible and convenient, use at any time, that is, suck and dry, reducing the risk of customers slipping; the true meaning of cleanliness, providing customers with a healthy and elegant environment.
2. Schools, hospitals, gymnasiums: high-efficiency cleaning tools can be cleaned in a real sense, reducing the risk of students getting sick. Wards and passages are kept clean while improving cleaning efficiency and reducing costs; the overall quality is improved.
3. Railway stations, carriages, and transportation hubs: flexible, fast, clean, and efficient.
4. Office buildings, residential properties, etc.: efficient and clean, save time and effort, save labor costs, reduce personnel risks, keep it clean and upgrade the quality of the property. Contact Us

Mini floor scrubber

.

Specification:

voltage

DC-36V

Number of brushes

2

Brush motor

36V-120W

Brush pressure

6kg

Water suction motor

36V-120W-140W

Brush diameter

212mm x2

Vacuum

10-12kpa

Brush speed

0-350rpm/min

Lithium battery capacity

8Ah

Walking speed

5km/h

Charging time

2H

Working width

430mm

Battery weight

3.1Kg

Water absorption width

450mm

Lithium battery life

about 2000 times

Cleaning efficiency

800-1000 /h

operating hours

1-1.2h

Noise

65-73DB

Minimum turning radius

R430mm

NW

18.5kg

Clean water capacity

3.2L

GW

23kg

Sewage capacity

6.5L

Package size

1162X535X285mm

Washing and sucking together, bringing true cleanliness.

With it, cleaning will be a pleasant thing. High appearance, easy to control; high efficiency, create value

360° rotation of the fuselage allows you to swim in narrow spaces. Weighing 18.5kg, it is convenient to go up and down the stairs, and meet the "spirit" winner on the narrow road. Ladies can also easily operate and transport (up and down stairs, storage in carts).

Double brush design, 430mm scrubbing width, high-speed operation can clean 800-1000m2 per hour, which is unmatched by traditional cleaning equipment.

Save water and consumables, reduce cleaning agents, save costs and be green at the same time.

After washing and sucking, the ground quickly dries, reducing slips and falls, with mature risks, quality control, and safe underwriting.

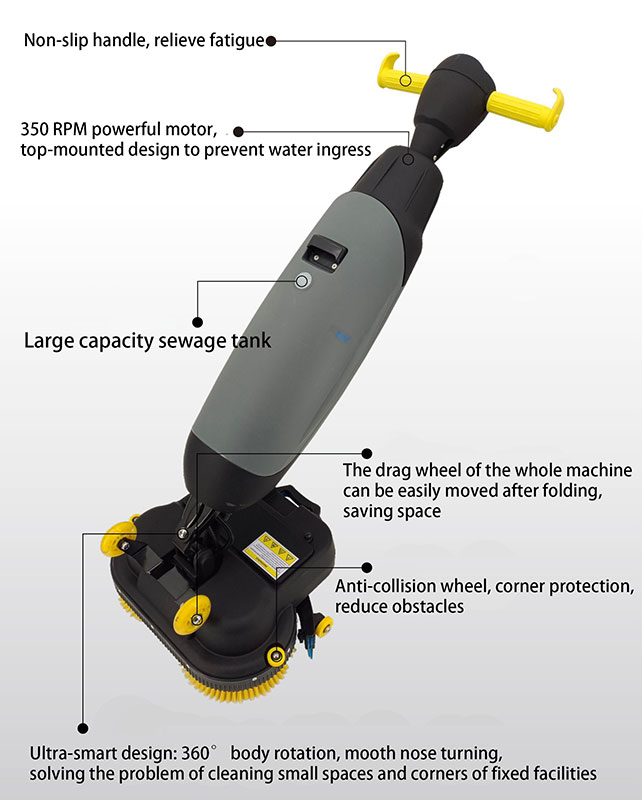

Non-slip handle, relieve fatigu

350 RPM powerful motor, top-mounted design to prevent water ingress

Large capacity sewage tank

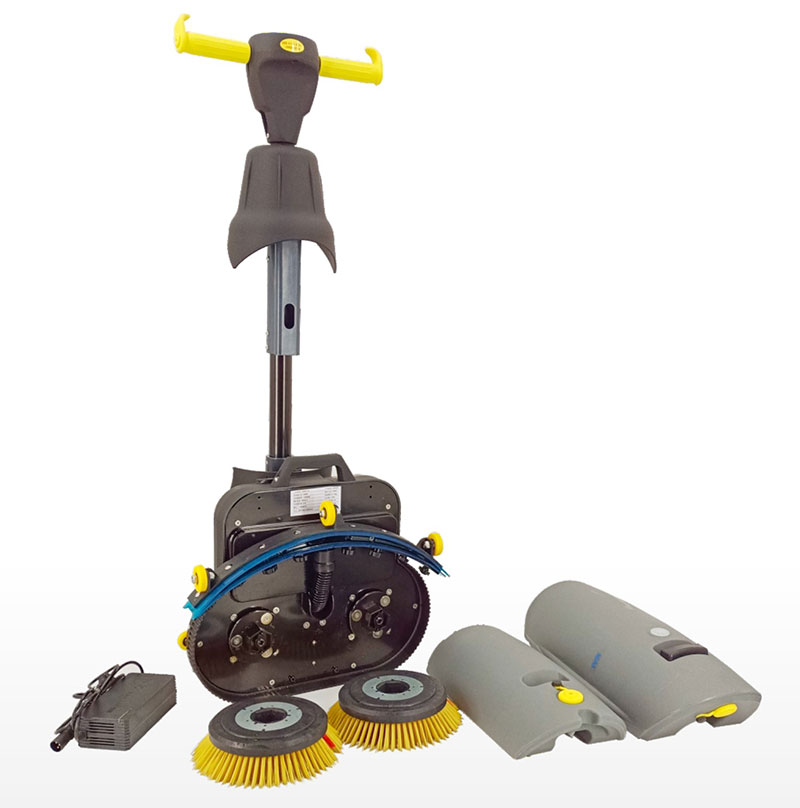

The drag wheel of the whole machine can be easily moved after folding, saving space

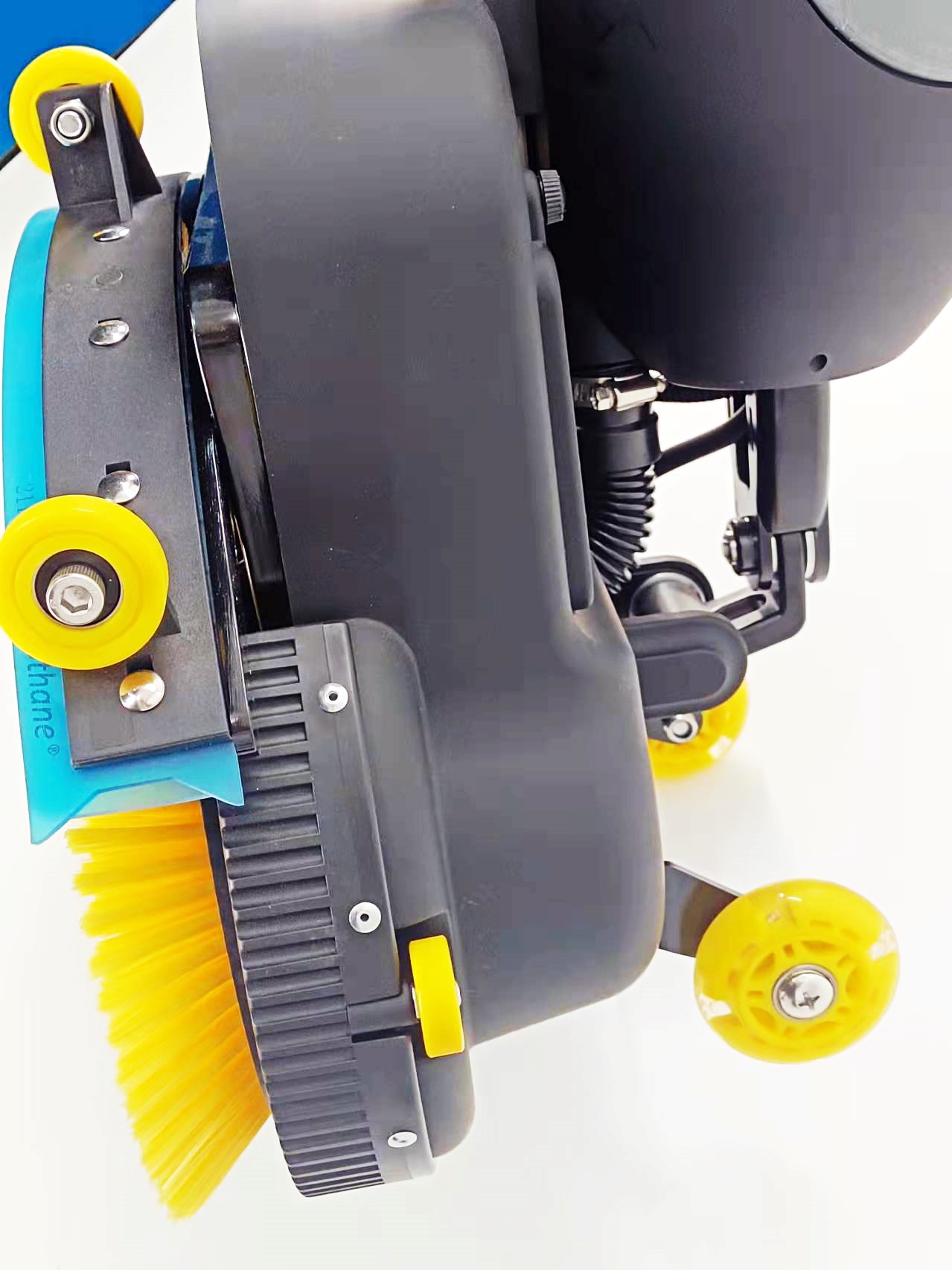

Anti-collision wheel, corner protection, reduce obstacles

Ultra-smart design: 360° body rotation, smooth nose turning, solving the problem of cleaning small spaces and corners of fixed facilities

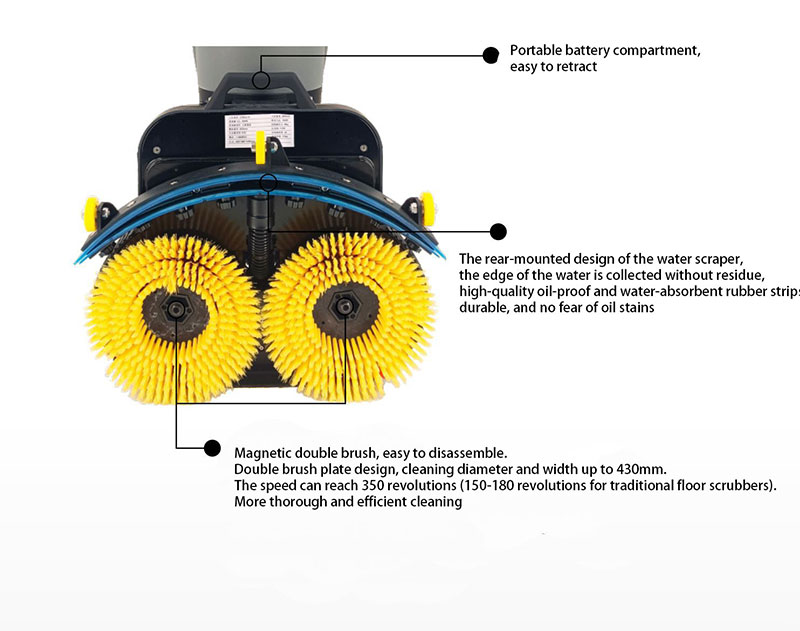

Portable battery compartment, easy to retract

The rear-mounted design of the water scraper, the edge of the water is collected without residue, high-quality oil-proof and water-absorbent rubber strips, durable, and no fear of oil stains

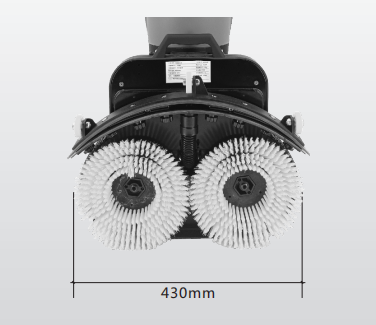

Magnetic double brush, easy to disassemble. Double brush plate design, cleaning diameter and width up to 430mm. The speed can reach 350 revolutions (150-180 revolutions for traditional floor scrubbers). More thorough and efficient cleaning

Super battery life:

It can be used for 80~90 minutes after a full charge. The battery is designed for disassembly and separation.

It can be purchased with a spare battery, which can be replaced at any time to increase battery life.

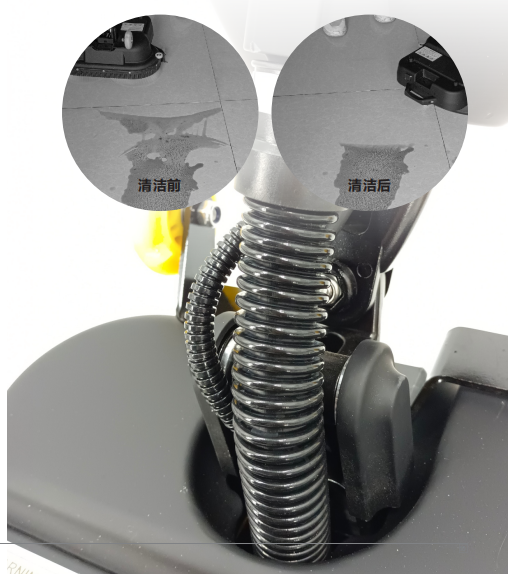

Strong power, no stains or water marks on the floor, strong power, low noise

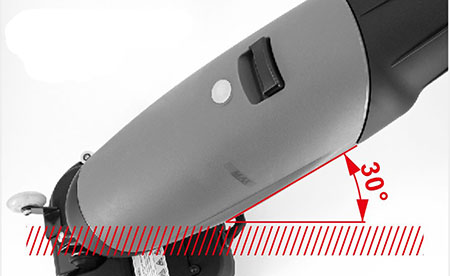

The lowest inclination angle of the water tank: 30 degrees

Please check it thoroughly before using it

Make sure that the equipment is running normally before putting it into use. Check the head part: open the battery cover and connect the power cord; check whether the brush is in place. Magnetic brush, humanized design, more convenient for loading and unloading.

Sewage tank inspection: pay attention to the position of the drain hole and the installation direction of the built-in drainage pipe (the transparent cover is not a water outlet, please be careful not to open it)

Clean water tank: Please fill clean water before use, and control it to be no higher than the water level line.

Operation) When installing the clean water tank, please add clean water first, and then add detergent.

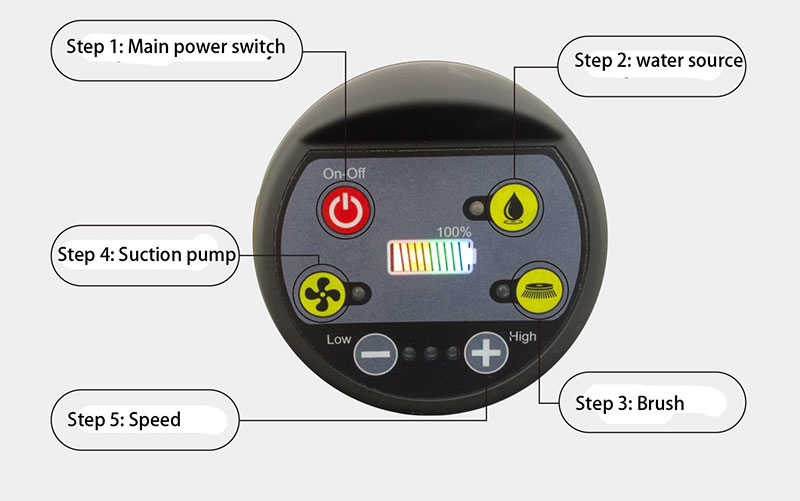

Introduction to the key functions of the display screen (total power supply, water outlet, scrubbing, water absorption, speed adjustment), operate in order to start the equipment


After the job is completed, proceed to the following steps

Turn off the water first, rotate and clean in place, then turn off the brush operation, and then turn off the suction motor for 10 seconds, and then turn off the power.

Note: If you turn off the power directly after cleaning, there will be residual water on the ground at the bottom of the machine. Please follow the normal operation method to achieve the ideal cleaning effect.

Park the machine at the designated position, lift the brush tray to its place, remove the recovery tank and brush, and clean it; wipe the wiper components dry with a rag. It is recommended that the brush be placed in a ventilated place to air dry and then installed on the machine, which can extend the service life.

Connect the power supply to charge the machine

PS: The red light on the charger means charging is in progress, and the green light means it is fully charged. There is no charging display on the display of the machine, and it will automatically power off when it is fully charged for about 2 hours



application:

1. Restaurants, hotels, shopping malls: flexible and convenient, use at any time, that is, suck and dry, reducing the risk of customers slipping; the true meaning of cleanliness, providing customers with a healthy and elegant environment.

2. Schools, hospitals, gymnasiums: high-efficiency cleaning tools can be cleaned in a real sense, reducing the risk of students getting sick. Wards and passages are kept clean while improving cleaning efficiency and reducing costs; the overall quality is improved.

3. Railway stations, carriages, and transportation hubs: flexible, fast, clean and efficient.

4. Office buildings, residential properties, etc.: efficient and clean, save time and effort, save labor costs, reduce personnel risks,

Keep it clean and upgrade the quality of the property.

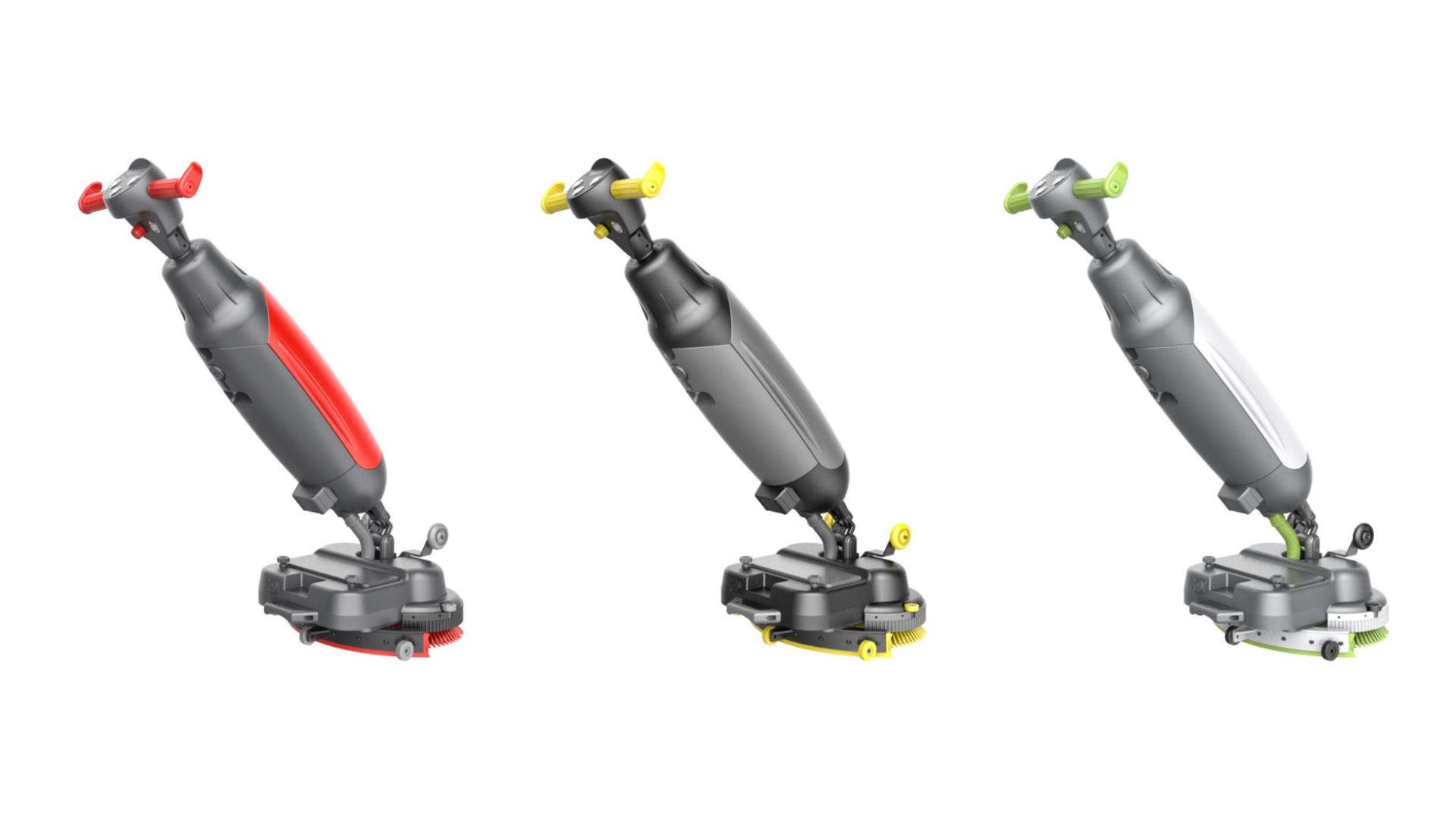

Meet the needs of different customers

Three main colors are launched, and color matching can also be customized according to customer requirements
